1060 HO Deep Drawing Aluminum Discs for Sale

Title

Top Aluminum Circle Manufacturer

HAOMEI Aluminum has more than 20 years of experience in aluminum disc production and is one of the leading aluminum disc manufacturers in China. Our main products include the 1100, 1060, 3003, 5052, and 8011 series, with an annual production capacity of over 200 tons. Our products are exported to Southeast Asia, the Middle East, Africa, South America, and other regions, and are well received by customers worldwide.

We use German SMS hot rolling mills and Kampf slitting machines to process aluminum ingots into high-quality aluminum coils. This enables us to control product quality from the source. For aluminum discs, we have exclusive production technology that ensures they do not crack and are perfectly suited for deep drawing and spinning processes.

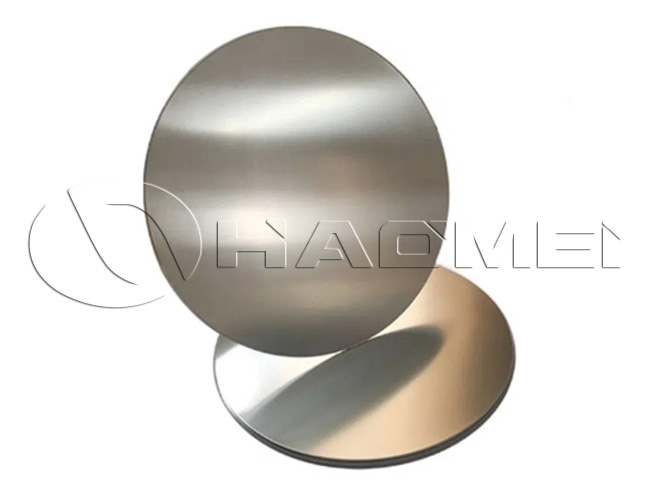

Overview of 1060 HO Deep Drawing Aluminum Discs

1060 aluminum alloy belongs to the 1000 series of pure aluminum, with an aluminum content of over 99.6%, offering excellent ductility and thermal conductivity.

HO (O temper) refers to the fully annealed state. In this state, the internal structure of the aluminum is uniform, and its plasticity is excellent, making it ideal for multi-stage stamping and deep drawing applications.

1060 HO deep drawing aluminum circles are produced by cutting, stamping, and annealing 1060 aluminum plates into standard or custom-sized discs. They are widely used for deep drawing, spinning, and stamping applications.

Advantages of 1060 HO Deep Drawing Aluminum Blanks

Outstanding Plasticity and Ductility:
High purity ensures excellent formability, making the discs resistant to cracking or wrinkling during deep drawing, suitable for complex deep-drawn structures.
Excellent Electrical and Thermal Conductivity:
The inherent properties of pure aluminum make it ideal for use in heat dissipation and electrical applications such as radiators and capacitor housings.
Good Corrosion Resistance:
In normal environments, 1060 aluminum forms a dense oxide film, providing good corrosion protection.
Excellent Surface Quality:
Smooth, clean surface without scratches or defects, suitable for polishing, painting, anodizing, and other finishing processes to achieve a high-quality appearance.
Superior Workability:
Easy to process through stretching, bending, welding, and other machining methods.
Lightweight:
Aluminum's low density-about one-third that of steel-makes handling, transportation, and installation easier.
Non-toxic and Recyclable:
1060 aluminum complies with food contact safety standards, is 100% recyclable, and is considered an environmentally friendly green material.

Specifications of 1060 Aluminum Discs

Alloy Designation	AA1060, A1060, 1060A, AI99.6, A9105\60, EN AW-1060
Temper	O, H12, H14, etc.
Thickness	0.5 - 6.0 mm
Diameter	100 - 1600 mm
Thickness Tolerance	±2% or customized
Width & Length Tolerance	Minimum ±0.5 mm
Process	Hot rolled, cold rolled
Surface Finish	Mill finish, silver, mirror, coated, brushed, anodized, etc.

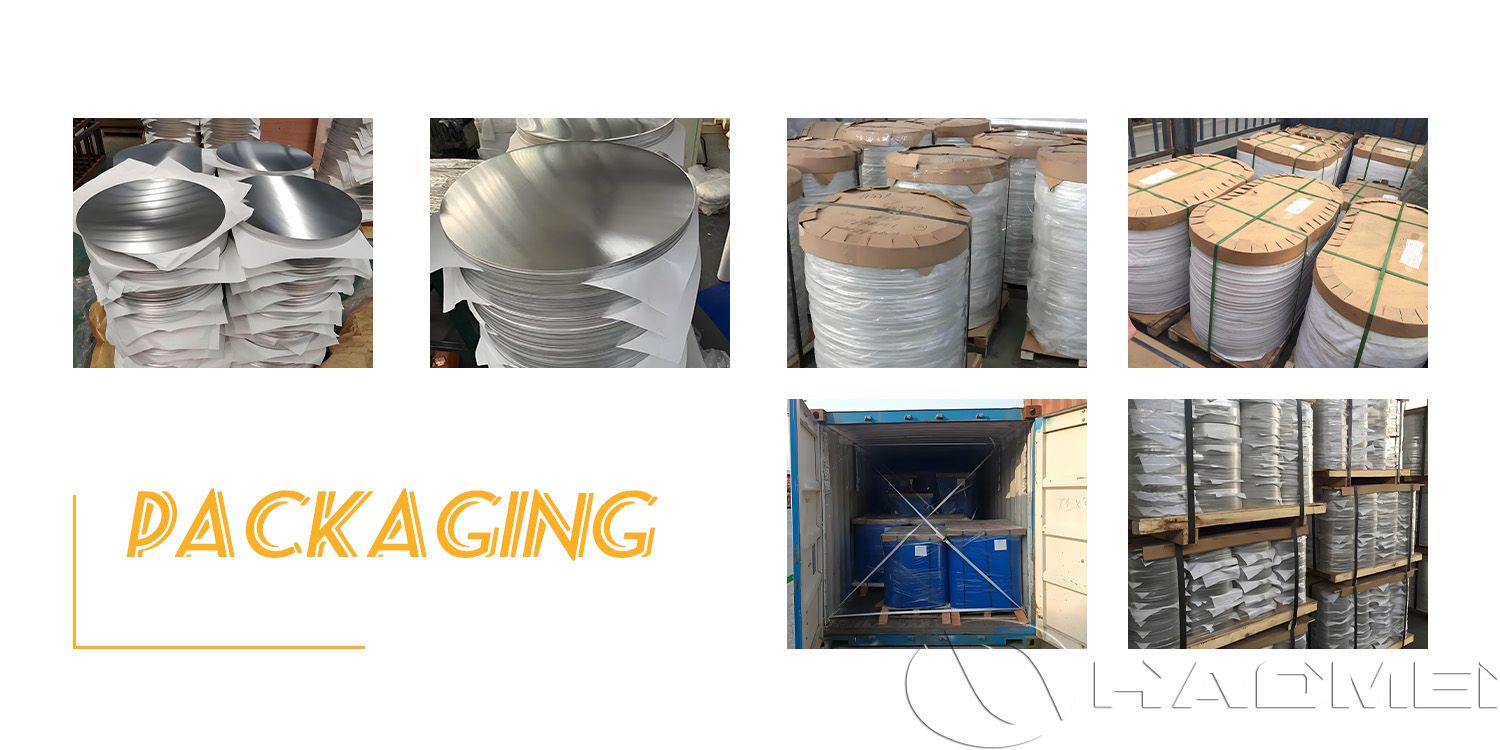

Packaging	Standard seaworthy export packaging
MOQ	1 ton per size, 20 tons per order

1060 Aluminum Chemical Composition (%)

Alloy	Mn	Fe	Cr	Cu	Mg	Si	Zn	Ti	Al
1060	0.03	0.35	-	0.05	0.03	0.25	0.05	0.03	99.6

1060 Aluminum Mechanical Properties

Property

(UTS)Tensile Strength

(Proof)Yield

Strength

Elongation at

Break

Shear

Modulus

Shear Strength

Elastic Modulus

Fatigue Strength

Poisson's Ratio

Value

63-130 MPa

17-110 MPa

1.1-30 %

26 GPa

42-75 MPa

68 GPa

15-50 MPa

0.33

1060 Aluminum Thermal Properties

Property

Latent Heat of Fusion

Maximum Temperature:

Mechanical

Melting Completion (Liquidus)

Melting Onset (Solidus)

Specific Heat Capacity

Thermal

Conductivity

Thermal

Expansion

Value

400 J/g

170 °C

660 °C

650 °C

900 J/kg-K

230W/m-K

24 µm/m-K

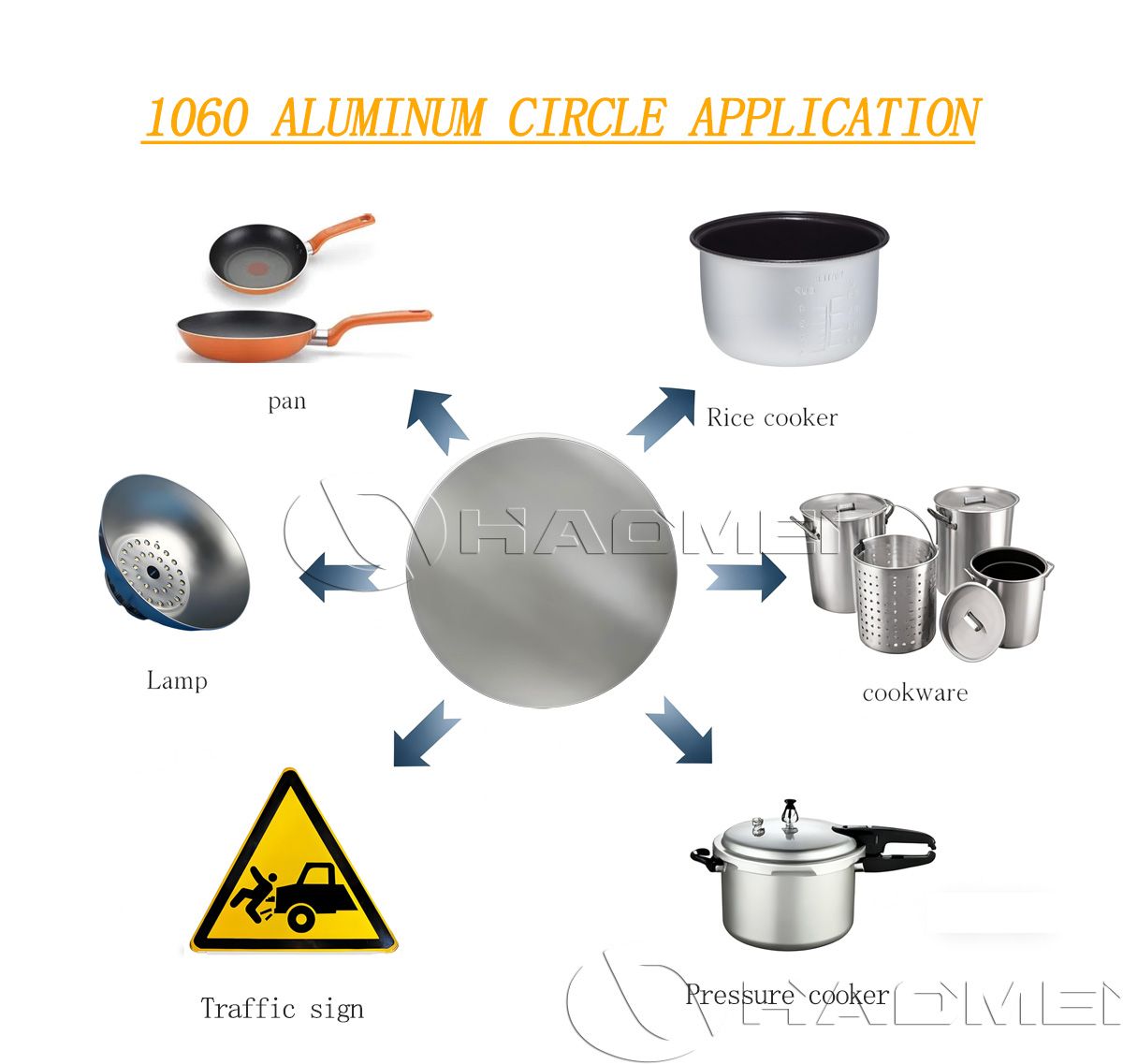

Common Thicknesses and Applications of 1060 Aluminum Circle Discs

Thickness (mm)	Thickness (inch)	Typical Applications
0.2-0.5	0.008-0.02	Bottle caps, thin foil containers, capacitors, shallow-drawn parts, food packaging.
0.6-1.5	0.024-0.06	Cookware (non-stick pans, baking trays), lighting reflectors, road signs, shallow embossing, general manufacturing.
1.6-3.0	0.063-0.12	Deep-drawn cookware (pressure cookers, large pots), traffic signs, general deep drawing, spinning components.
3.1-6.0	0.122-0.24	Heavy-duty cookware bases, industrial parts, thicker spinning components, some automotive applications.

Quality Control for 1060 Aluminum Circle Blanks

Surface Quality: Smooth, clean surface without scratches, oil, oxide scale, or bubbles, ensuring excellent appearance after deep drawing.
Thickness Tolerance and Uniformity: Strict control guarantees dimensional accuracy and prevents rupture during forming.
Annealing Process: Ensures true HO soft temper, which is essential for achieving superior deep drawing performance.

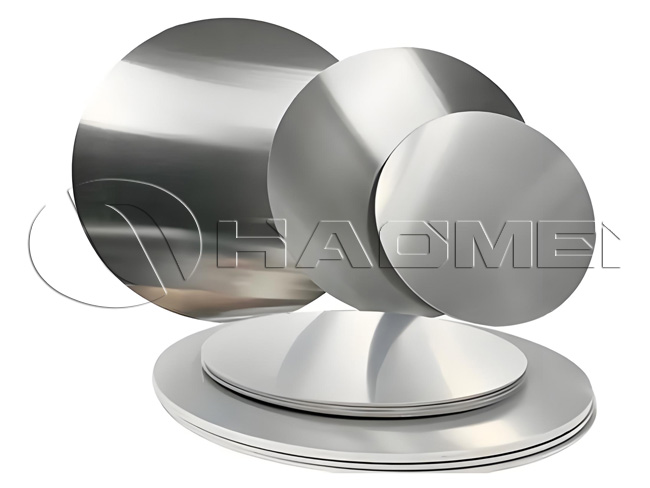

Comparison: 1060 HO vs 1050 HO Aluminum Circles

Compared with 1050 HO aluminum circles, 1060 HO discs have a slightly higher aluminum content (99.6% vs 99.5%), better ductility and deep drawing performance, making them more suitable for demanding forming processes such as spinning and drawing. 1060 also offers slightly superior electrical and thermal conductivity and better surface treatment adaptability. 1050, however, is more cost-effective, suitable for less demanding applications.

How Much Do 1060 Aluminum Blanks Cost per Ton?

The price depends on the daily aluminum ingot price, shipping cost, and processing fees. Different thicknesses and alloy grades also affect the price.
For accurate quotations, please send us the alloy grade, thickness, diameter, and other product details. Our professional sales managers will respond promptly with a tailored quote.
