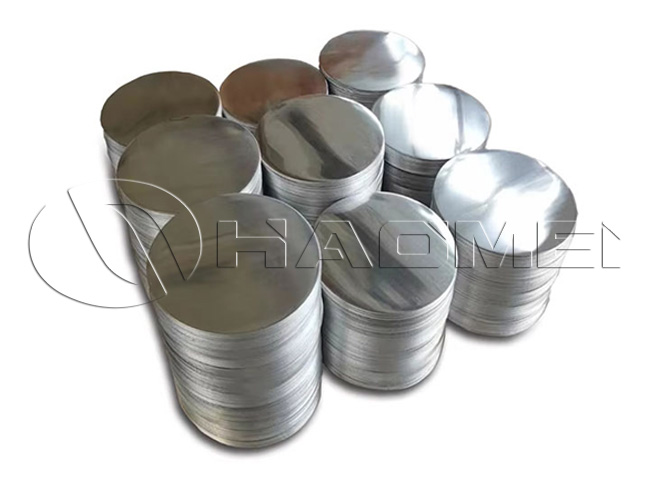

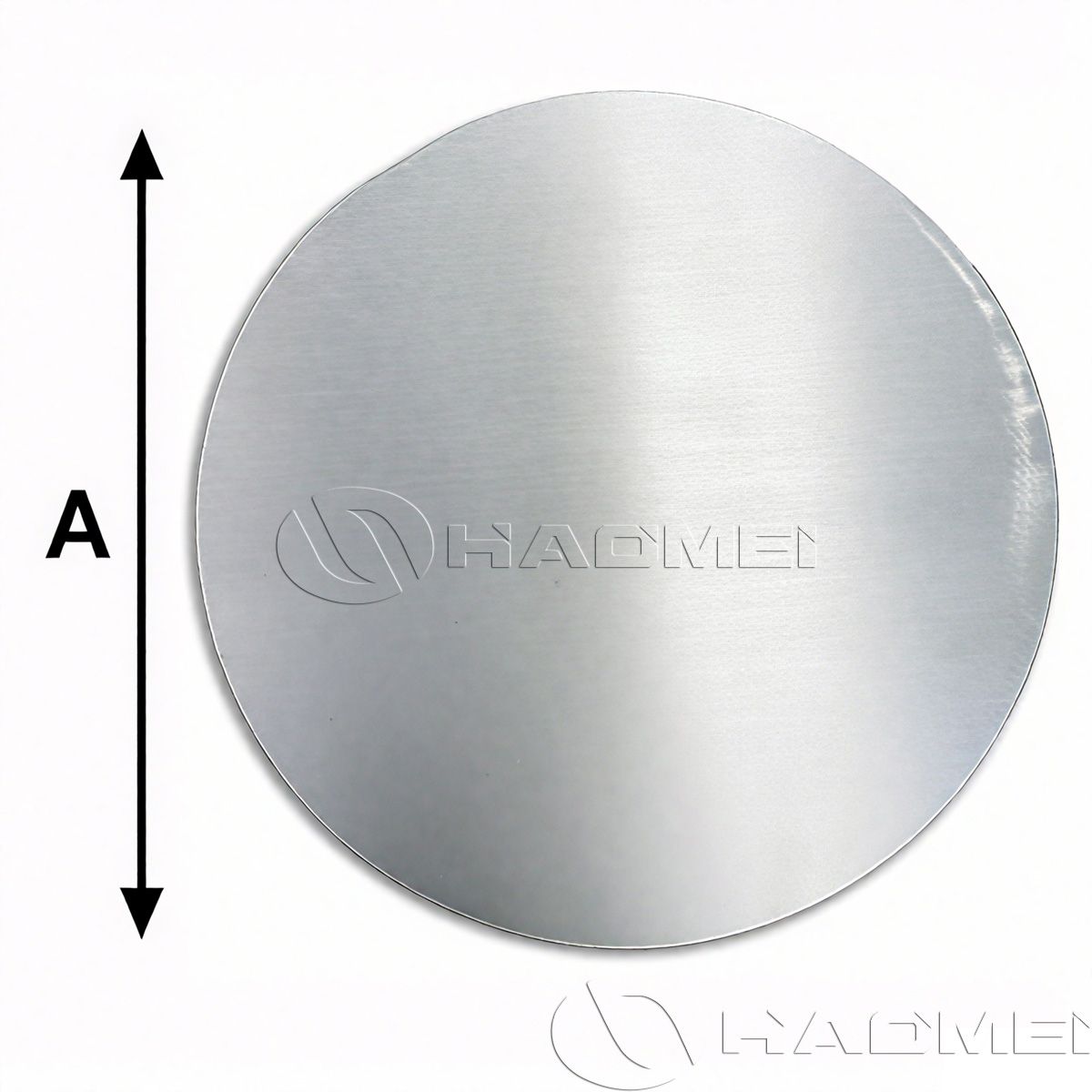

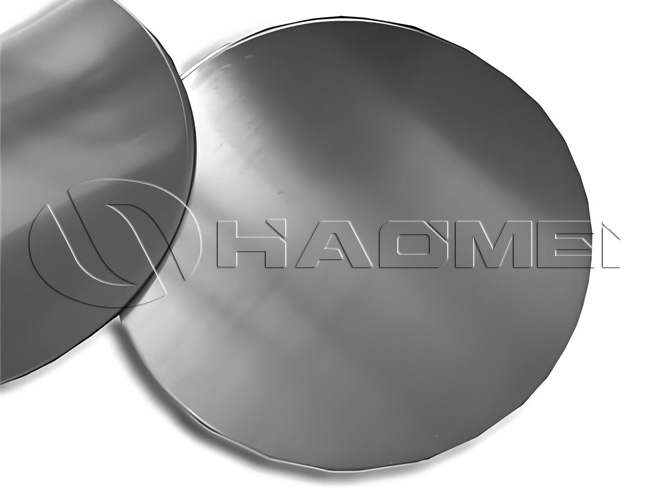

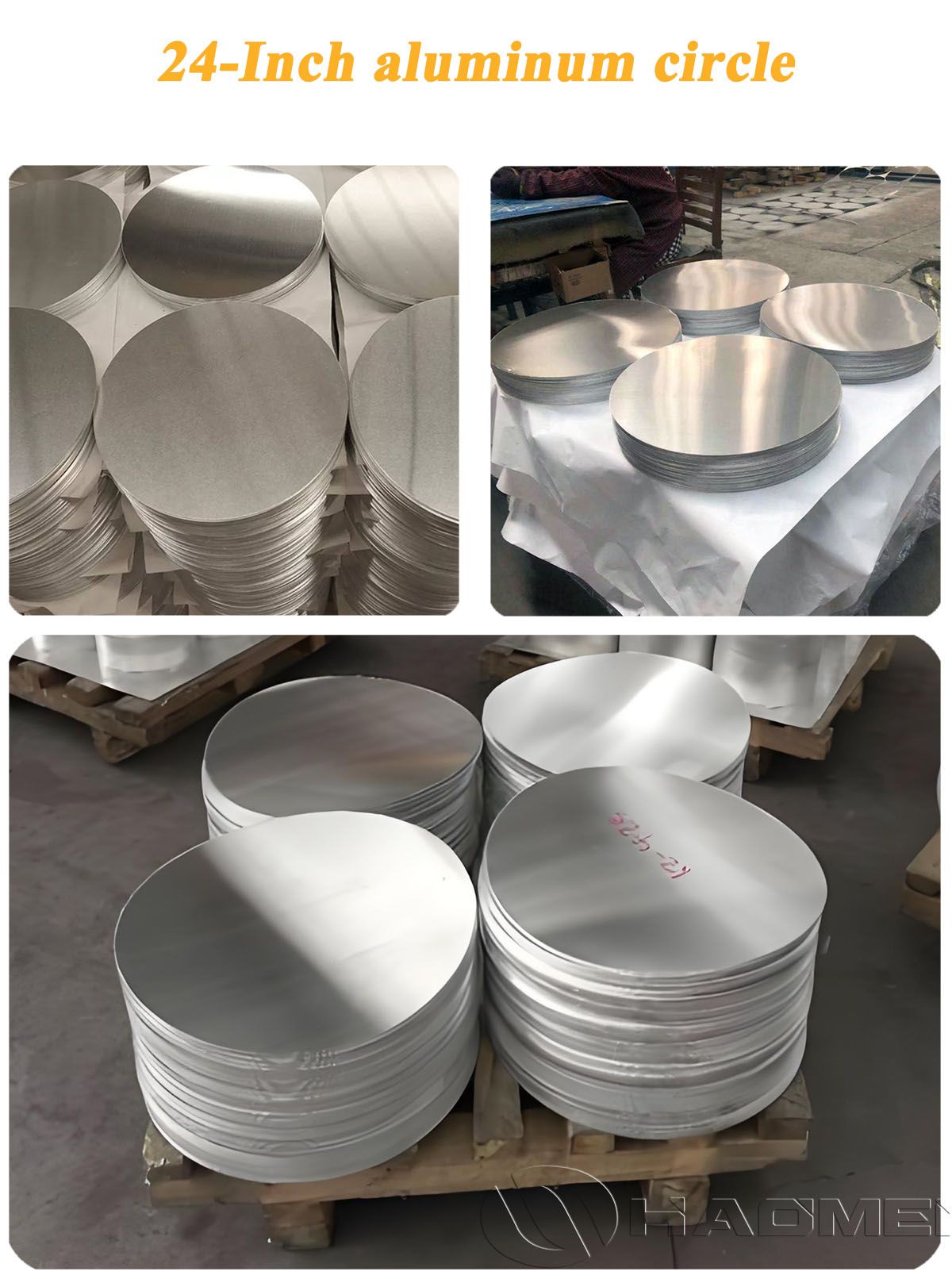

The 24 inch aluminum circle (approximately 610 mm in diameter) is a large-sized round aluminum product, usually made of pure aluminum or aluminum alloy through precision rolling and leveling processes.

HAOMEI Aluminum adopts fully automated CNC decoiling and blanking production lines, equipped with high-precision servo motor systems and a six-roll leveler, achieving unmanned operation from coil decoiling to disc forming. The production line supports a diameter range of 85-750 mm, enabling flexible manufacturing for multi-size orders.

The thickness range of the aluminum circles can be customized according to application needs, typically between 0.3 mm and 6 mm. Surface treatment options include polishing, anodizing, coating, and spraying, meeting both functional and aesthetic requirements for different industries.

Common Alloy Grades for 24 Inch Aluminum Circle Discs

24 inch aluminum wafers commonly use aluminum alloy grades such as 1 series (1050, 1060), 3 series (3003), and 5 series (5052, 5754, 5083) to meet different strength and corrosion resistance requirements.

• 1050/1060 Pure Aluminum Discs: Purity ≥ 99.5%, excellent ductility and corrosion resistance, suitable for anodizing, coating, and decorative applications such as cookware and decorative components.

• 3003 Aluminum Alloy Discs: Manganese alloyed, ~20% stronger than pure aluminum, while retaining good stamping performance. Widely used in air conditioner chassis, motor end covers, and other components.

• 5052 / 5754 Aluminum Alloy Discs: Magnesium alloyed, excellent resistance to seawater corrosion and high fatigue strength. Applied in EV battery casings, automotive fuel tanks, large signage, and marine fittings.

• 5083 Aluminum Alloy Discs: Marine-grade alloy with high strength and outstanding corrosion resistance, ideal for shipbuilding and high-end industrial parts.

24" Aluminum Wafers Product Specifications

Product Features of 24-Inch Aluminum Discs

1. Excellent Mechanical Properties : Ideal strength-to-weight ratio for lightweight applications in transport and portable structures.

2. Outstanding Corrosion Resistance : Naturally resistant to oxidation; surface treatments enhance durability against weather and chemicals.

3. Superior Workability : Highly formable and suitable for stamping, cutting, and bending, supporting customized part fabrication.

4. High Thermal Conductivity : Excellent heat transfer, widely used in cookware, radiators, and heat exchangers.

5. Eco-Friendly & Recyclable : 100% recyclable with low energy consumption during recycling, aligned with sustainability.

6. Aesthetic Surface Options : Easily processed for multiple finishes, colors, and textures, ideal for electronics and premium housings.

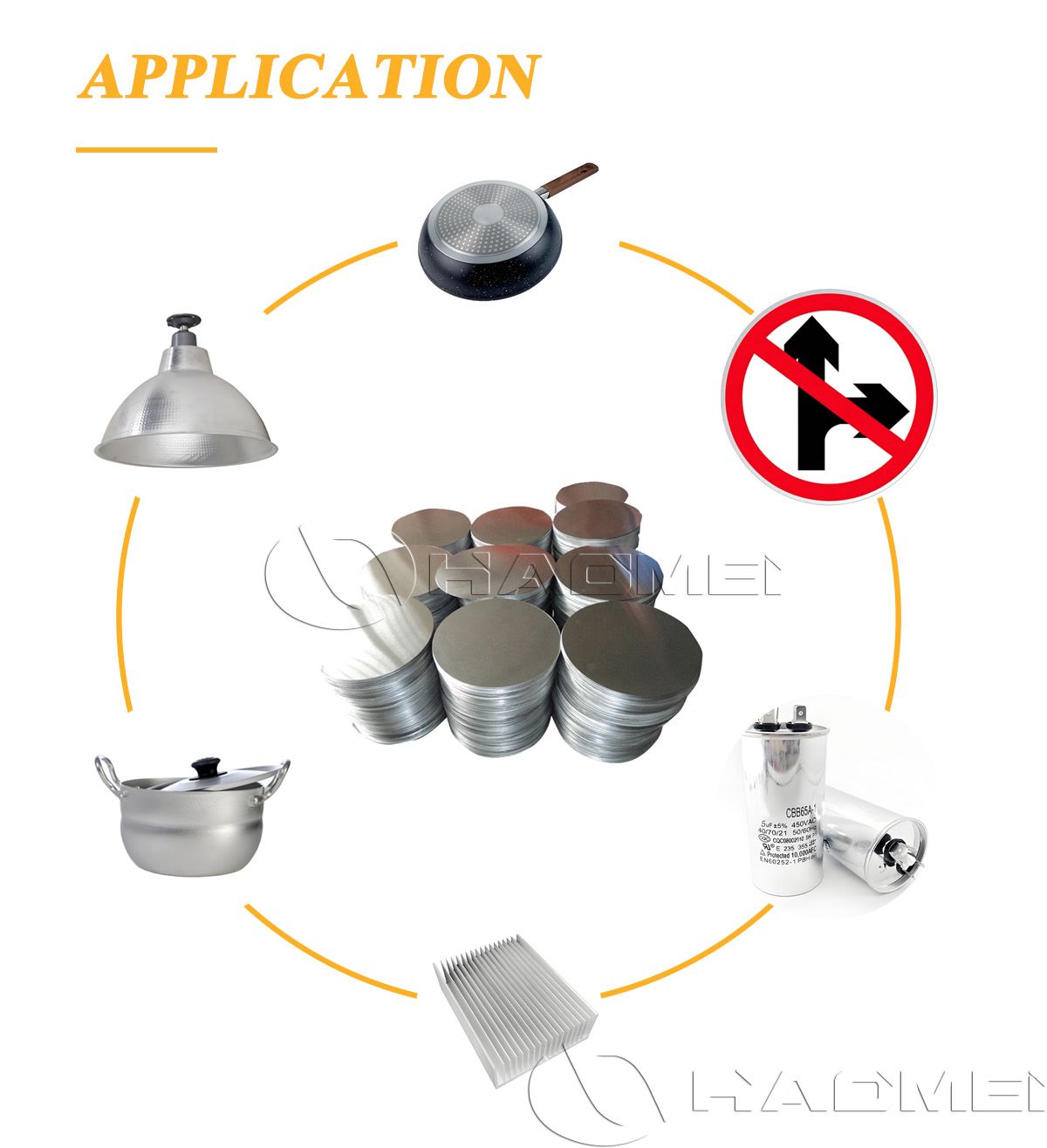

Applications of 24-Inch Aluminum Blanks

• Lighting Manufacturing
  With reflectivity over 85%, aluminum discs are ideal substrates for lampshades and reflectors, enhancing lighting efficiency and aesthetics.

• Traffic Signs
  Superior flatness and weather resistance make them the perfect choice for durable, highly visible traffic signage with strong self-cleaning properties.

• Cookware
  Non-toxic, easy-to-clean, and highly conductive, aluminum is the preferred material for premium cookware such as frying pans, woks, and baking molds.

• Industrial Manufacturing
  Commonly used for protective covers, panels, and gaskets. The 24-inch size fits standard equipment access panels, reducing assembly needs and improving safety.

Manufacturing Process of 24 Inch Aluminum Circles

Raw Material Selection : High-quality aluminum ingots are melted, cast, and rolled into coils to ensure alloy consistency.

Precision Blanking : Automated CNC stamping or laser cutting delivers precise diameters with smooth edges.

Annealing & Leveling : Heat treatment enhances ductility; leveling ensures flatness.

Surface Treatment : Polishing, spraying, anodizing, or mirror finishing according to customer requirements.

Inspection & Sorting : Thickness, diameter, and surface quality are strictly tested to ensure each disc meets standards.

Why Choose Our 24-Inch Aluminum Discs?

• Advanced Equipment: Automated stamping and CNC cutting lines guarantee dimensional accuracy.

• Strict Quality Control: Compliant with ISO, ASTM, EN international standards.

• Global Export Experience: Widely exported to Europe, Southeast Asia, and the Middle East with high customer satisfaction.

• One-Stop Solutions: From alloy selection and size customization to surface finishing, tailored for multi-industry needs.
